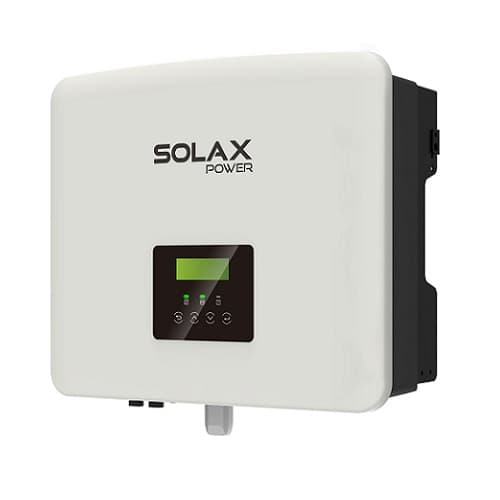

SolaX X1-Hybrid Single Phase Hybrid Inverter

Introducing one of the third generation of solar battery storage products from SolaX Power. For sustainable solar power conservation to reduce your solar energy waste, read on how the X1-Hybrid Single Phase Hybrid Inverter can support and aid your solar power system needs.

Product Description

SolaX Power’s X1-Hybrid Single Phase Hybrid Inverter is a market-leading solar battery storage product. Soaring in popularity, this product is compatible with the leading lithium-ion battery solutions that are now offered in the market.

X1-Hybrid Single Phase Hybrid Inverter Features

6000W Charger/ Discharger Rate
3 Inverter Models
Reliable product protection with IP65 rating
Ease of access, control, and convenience with remote monitoring

X1-Hybrid Single Phase Hybrid Inverter Specification

Coming to you with an excellent specification list, the X1-Hybrid Single Phase Hybrid Inverter involves:

Model	X1-HYBRID-3.0T	X1-HYBRID-3.7T	X1-HYBRID-4.6T	X1-HYBRID-5.0T
INPUT (DC)	C Version E Version I Version	C Version E Version I Version	C Version E Version I Version	C Version E Version I Version
Max.PV array power [Wp]	4500	5550	6900	7500
Max. recommended DC power [W]	A:3000 B:3000	A:3000 B:3000	A:3000 B:3000	A:3000 B:3000
Max.DC voltage [V]	600	600	600	600
Nominal DC operating voltage [V]	360	360	360	360
Max. input current (input A/ input B) [A]	12/12	12/12	12/12	12/12
Max.short circuit current (input A/ input B) [A]	14/14	14/14	14/14	14/14
MPPT voltage range [V]	125-550	125-550	125-550	125-550
Start operating voltage [V]	150	150	150	150
No. of MPP trackers/ strings per MPP tracker	2(1/1)	2(1/1)	2(1/1)	2(1/1)
INPUT AC
Max. apparent AC power [VA]	3000 3000 7000	3680 3680 7680	4600 4600 9600	4999 4999 9999
Max. AC current [A]	14.4 14.4 30.4	16.0 16.0 33.4	21.0 21.0 41.7	21.7 21.7 42.7
Nominal grid voltage (AC voltage range) [V]	220/230/240(180-270)	220/230/240(180-270)	220/230/240(180-270)	220/230/240(180-270)
Nominal grid Frequency/range [Hz]	50/60	50/60	50/60	50/60
OUTPUT AC
Nominal AC power [VA]	3000	3680	4600	4999
Max.apparent AC power [VA]	3300	4048 (3680 for G98)	5060	5500 (4999 for AS4777, 4600 for VDE4105)
Nominal grid voltage (AC voltage range) [V]	220/230/240(180-270)	220/230/240(180-270)	220/230/240(180-270)	220/230/240(180-270)
Nominal grid frequency/range [Hz]	50/60	50/60	50/60	50/60
Nominal AC current [A]	13	16	20	21.7
Max. AC current [A]	14.4	16	21	23.9 (20 for VDE4105, 21.7 for AS4777)
Displacement power factor	0.8 leading … 0.8 lagging
THDi, rated power [%]	<2
OUTPUT DC (BATTERY)
Battery voltage range [V]	85-400
Recommended battery voltage [V]	300
Max.continuous charge/discharge current [A]	20
Communication interfaces	CAN/RS485
Reverse connect protection	Yes
EPS OUTPUT (WITH BATTERY)
EPS MAX. continuous apparent power [VA]	4000	4000	5000	5000
EPS rated voltage [V], frequency [Hz]	230, 50/60	230, 50/60	230, 50/60	230, 50/60
EPS MAX. continuous current [A]	21.7	21.7	26.0	26.0
EPS peak apparent power [VA] Duration [s]	8000 10	8000 10	8000 10	8000 10
Changeover time [ms]	<20 for I version/ < 500 for E version
THDv, linear Load [%]	<2
EFFICIENCY
MPPT efficiency [%]	99.9
Euro efficiency [%]	97.0
Max. efficiency [%]	97.8
Battery charge/discharge efficiency [%]	98.5 (PV-BAT) 97.0 (BAT-AC)
POWER CONSUMPTION
Standby consumption (Night) [W]	<15 for hot standby, <3 for cold standby
STANDARD
Safety	IEC62109-1/-2
EMC	EN61000-6-1/EN61000-6-2/EN61000-6-3
Certification	VDE 0126-1-1 A1:2012 / VDE-AR-N 4105 /G99 /G98 / AS4777 / EN50549/ CEI 0-21 /VDE 2510 / and so on
ENVIRONMENT LIMIT
Degree of protection (according to IEC60529)	I065
Operating temperature range [°C]	-20 ~ + 60 (derating at + 45)
Max. operation altitude [m]	<2000
Humidity [%]	0 ~ 100 (non-condensing)
Storage temperature [°C]	-20 ~ + 60
Typical noise emission [dB]	40
DIMENSION AND WEIGHT
Dimensions (WxHxD) [mm]	*476464180*
Weight [kg]	24
Cooling concept	Natural
Topology	Non-isolated
Communication interfaces	Ethernet/ Meter/ Pocket WiFi (optional) / Pocket GPRS (optional) / DRM / UCB / ISO alarm/ CT
LCD display	*Backlight 203 character**
Standard warranty [years]	5-10

About SolaX Power

SolaX Power are an international company committed to and striving to be at the forefront of revolutionising solar power. With their dedication to research and development, they are pushing to drive a greener and more sustainable future. Currently, their products stand as market-leading solutions with their efficient solar inverter, channelling clean energy.

How Warmaway can help:

As your skilled and qualified heating system specialists, including renewables such as solar, we harness our efforts in providing, installing, and servicing our customers with top-quality solar products. Thanks to some of our products supplied by SolaX Power we ensure our customers are able to save, conserve and utilise energy in the most efficient way suitable for you.

More product guides

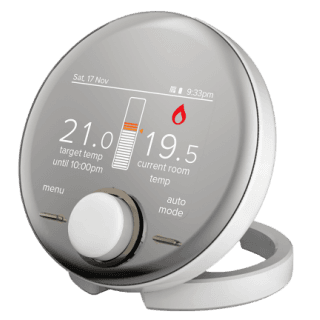

Ideal Heating Halo Wi-Fi Combi Wireless Thermostat

Discover how the Halo Combi Wi-Fi Thermostat provides flexible and easy management of your household heating, with smart home compatibility and easy integration for intelligent heating control.

Cover image for NIBE S1255 Ground Source Heat Pump

Create the perfect indoor climate with renewable energy. Read more about NIBE S-Series Heat Pumps and how they can save you up to 75% on your energy costs.

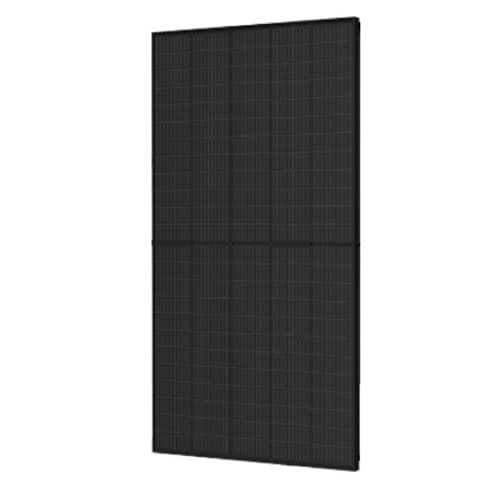

Cover image for Trina Solar Vertex S Monocrystalline Module
